Wall Mount Dust Port
Wall Mount Floor Sweep with 4 inch Duct Connection
SKU: GD-FS-WM-4
Ships in 3 to 5 business days.
3D printed in PETG and made to order. Shipping is a flat $7.95 anywhere in the US.
Sweep debris to the duct, so you skip the dustpan and the cleanup.
- Made to fit your toolFriction fit, no clamps
- Made in the USAPrinted to order
- Flat $7.95 shippingOne rate, anywhere in the US
- PETG, not brittle PLABuilt for the shop
About This Floor Sweep

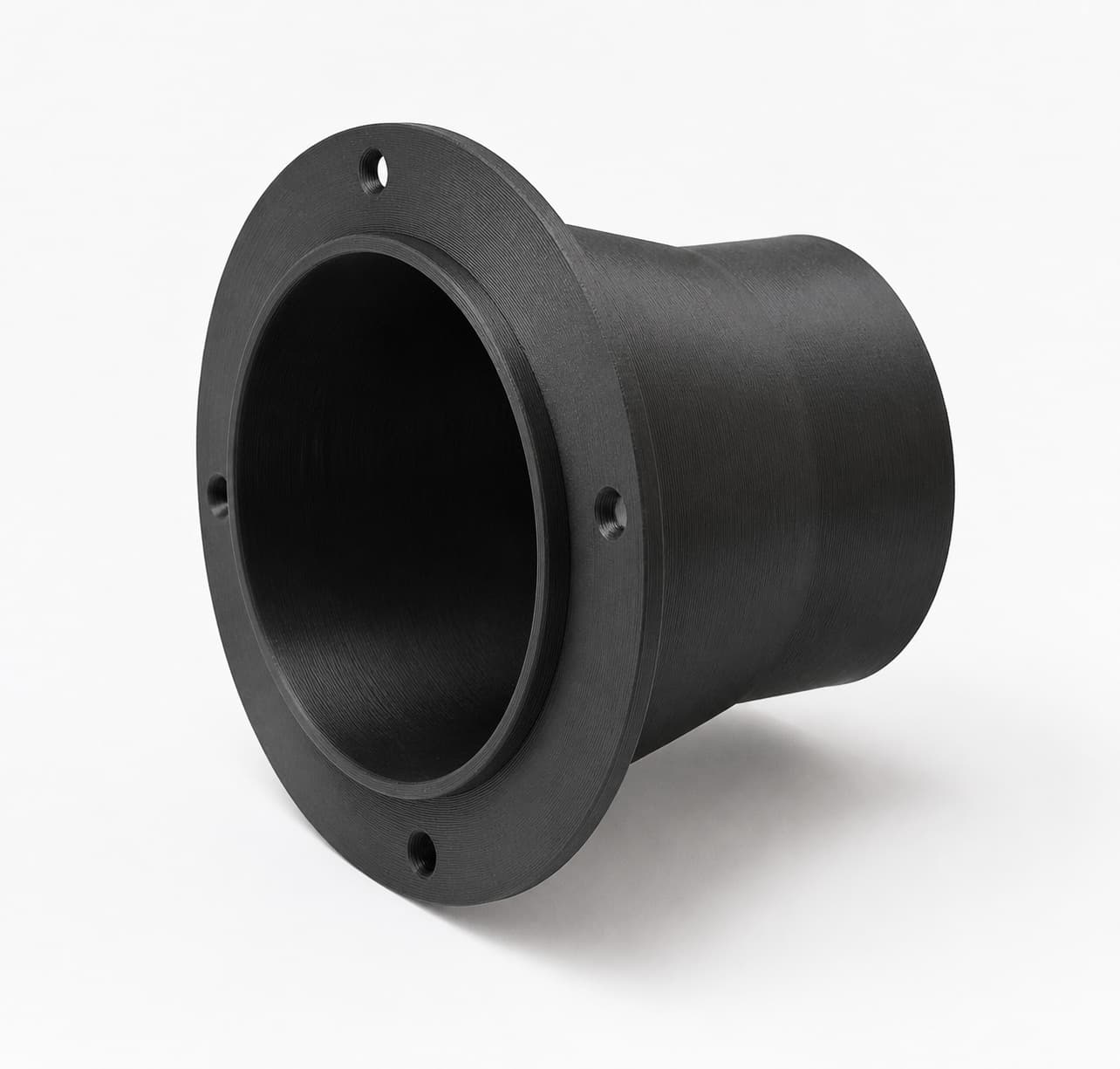

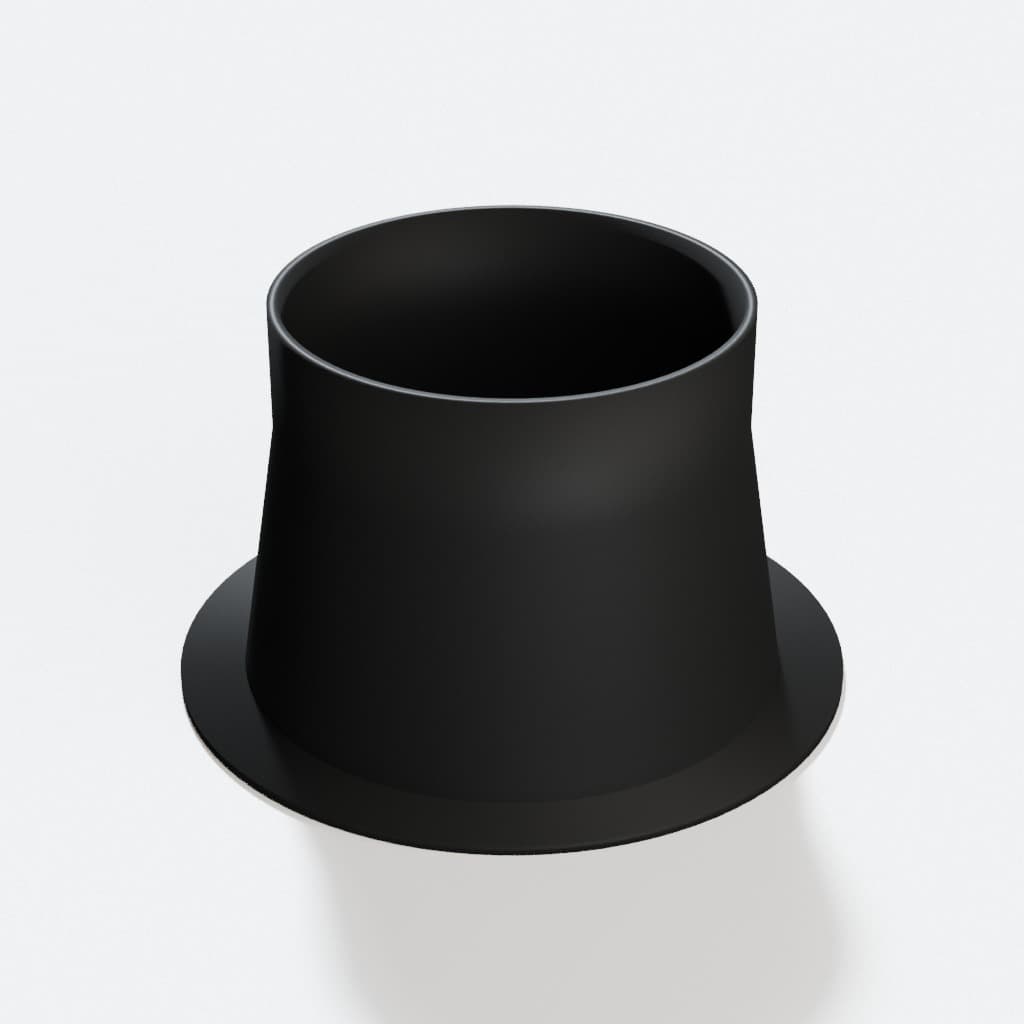

Sweep the floor straight into your dust collector, so you skip the dustpan and the bending over. This wall mount dust port connects to 4" duct, so the mess goes right where your system already pulls. The intake opening runs about 120mm by 120mm. Measure the spot you want it in and match it to that opening.

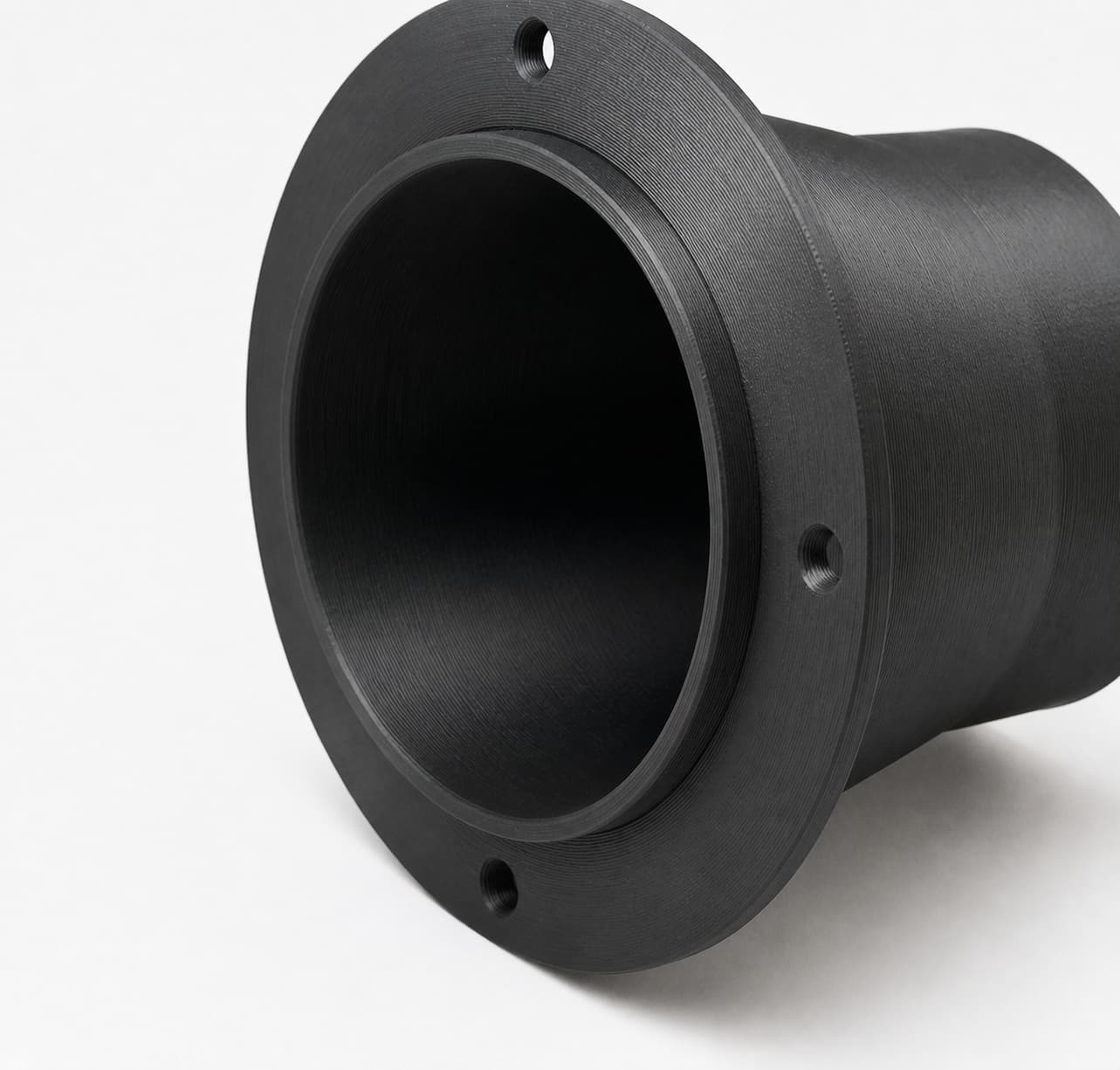

Pre-drilled holes let you screw it down in minutes. It is printed in PETG, so it stands up to shop heat and solvents and will not crack like brittle PLA. Every part is made to order in the USA.
What You Get
- One PETG wall mount dust port with a 4" duct connection
- A wide intake, so a push broom clears the floor in one pass
- A clean friction-fit duct connection, so it pushes on snug
- Pre-drilled mounting holes, so it screws down in minutes
How it fits
- 1
Mount it at floor level near your 4" duct run.
- 2
Connect your 4" duct to the back port.
- 3
Open the gate or valve at your dust collector.
- 4
Sweep the dust toward the intake and it pulls right in.
Settle the size
Two ways to land on the right number.
1. Measure it yourself
Calipers or a ruler in millimeters. That number is what the builder asks for, and we print to it.
How to measure both ends
First look at the port on your tool. Most are an opening you can put a caliper tip inside. Some are a stub that sticks out, the kind a hose slips over. The two need different numbers, so check which one you have before you measure.
If the port is an opening, measure the inside. Put your calipers in the opening and open them until they touch both walls. That inside number is the one our parts are built to, because our adapter goes into the port.
If the port is a stub the hose slips over, measure across the outside of the stub. Our adapters today are male on both ends, so they go into an opening rather than over a stub. That means a stub port may need a different part than the ones we list, so ask us before you order.
Do the same at the vacuum end. Measure the inside of the open hose or duct end. With both numbers written down, the chart and the builder both know what to show you.
2. Put your setup on the record
Give us two numbers and we build to them.
Common questions
What duct size does it take?
It connects to 4" duct. Use a reducer or hose adapter if your duct run is a different size.
How do I mount it?
It comes with pre-drilled holes, so you screw it to the wall, the bench, or the baseboard in a few minutes.
Can I shut off airflow?
This model has no built-in gate. Add a blast gate on the duct run if you want to close it off.
What is it made of?
PETG. It handles shop heat and common shop solvents and takes knocks without cracking like brittle PLA.
