Shaper Origin CNC Router Dust Port Size and Shop Vac Adapter
The Shaper Origin is a handheld CNC router. It guides your cuts with a camera and on-screen designs, so you can rout joints, inlays, and shapes with hand-tool freedom. All that routing makes chips and fine dust right where the tool needs a clear view.
Shaper states the dust port is 27 mm internal diameter. That is the official figure. Our PETG adapter plugs into the 27 mm port and steps it to any standard shop vac or dust extractor hose. No tape. No clamps.
Shaper Origin Dust Port and Specs
| Dust port inner diameter | 27.0mm (1-1/16 in.) |
|---|---|
| Port shape | Round |
| Port location | Rear |
| Connection type | Friction fit |
| Tool type | Handheld CNC router |
Shaper Origin Dust Port Size: 27 mm Round Port
Shaper publishes the Origin dust port as 27 mm internal diameter. It is an official figure straight from the maker, so we list it as fact.
That 27 mm size is small next to common vac gear. Most shop vac hoses are 1-7/8 inch or 2-1/2 inch, far too big to grip a 27 mm port on their own. Taping a big hose to a small port leaks dust and falls off mid cut.

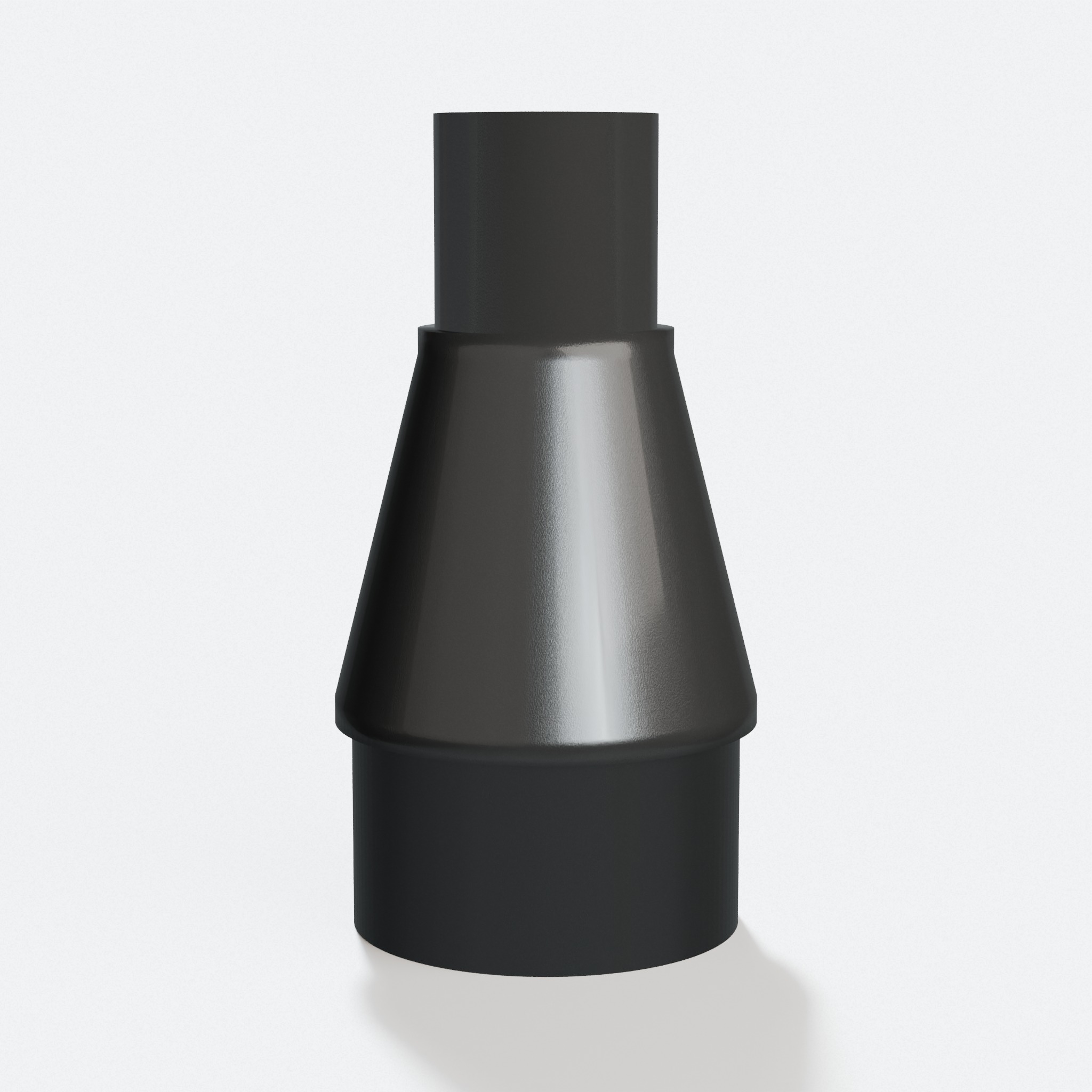

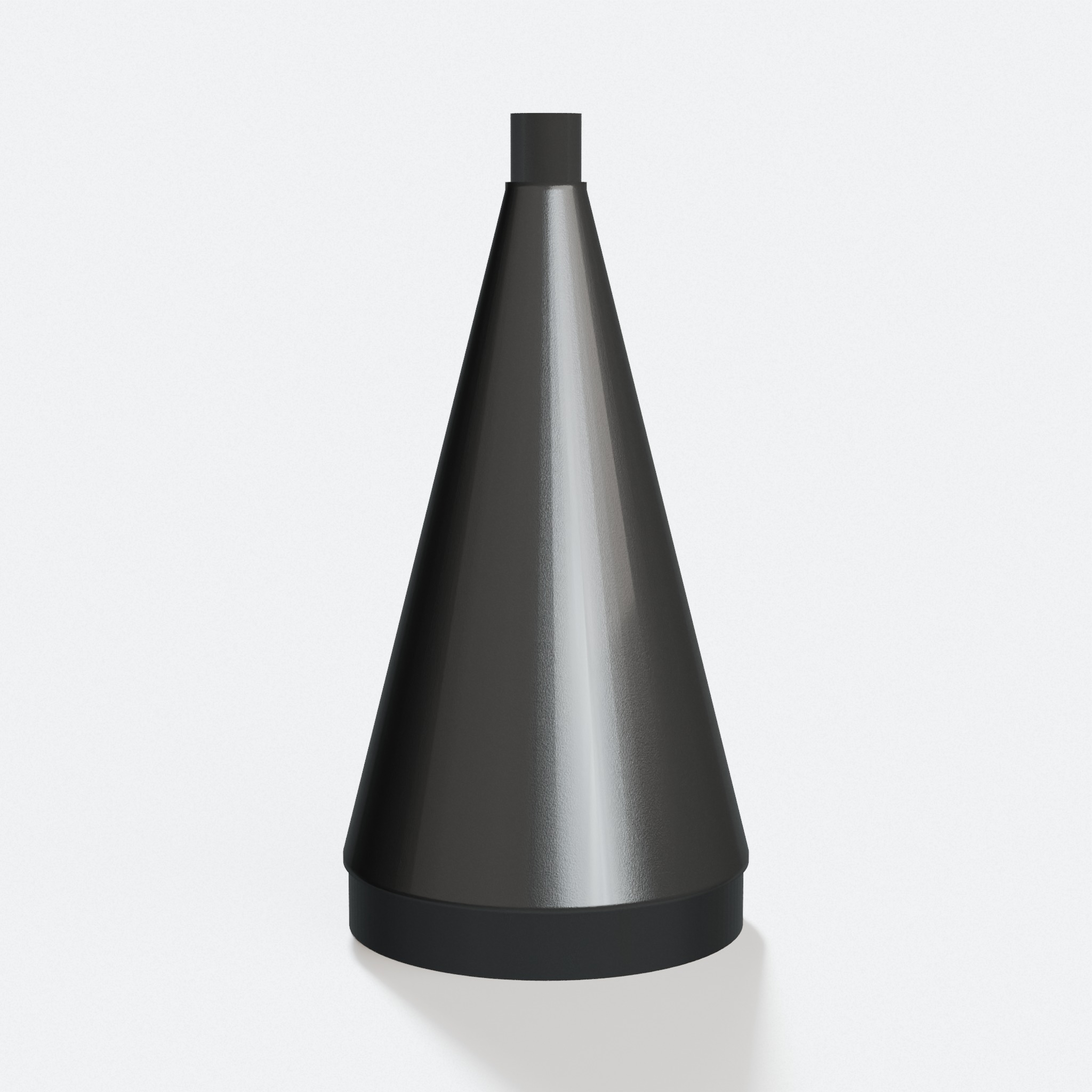

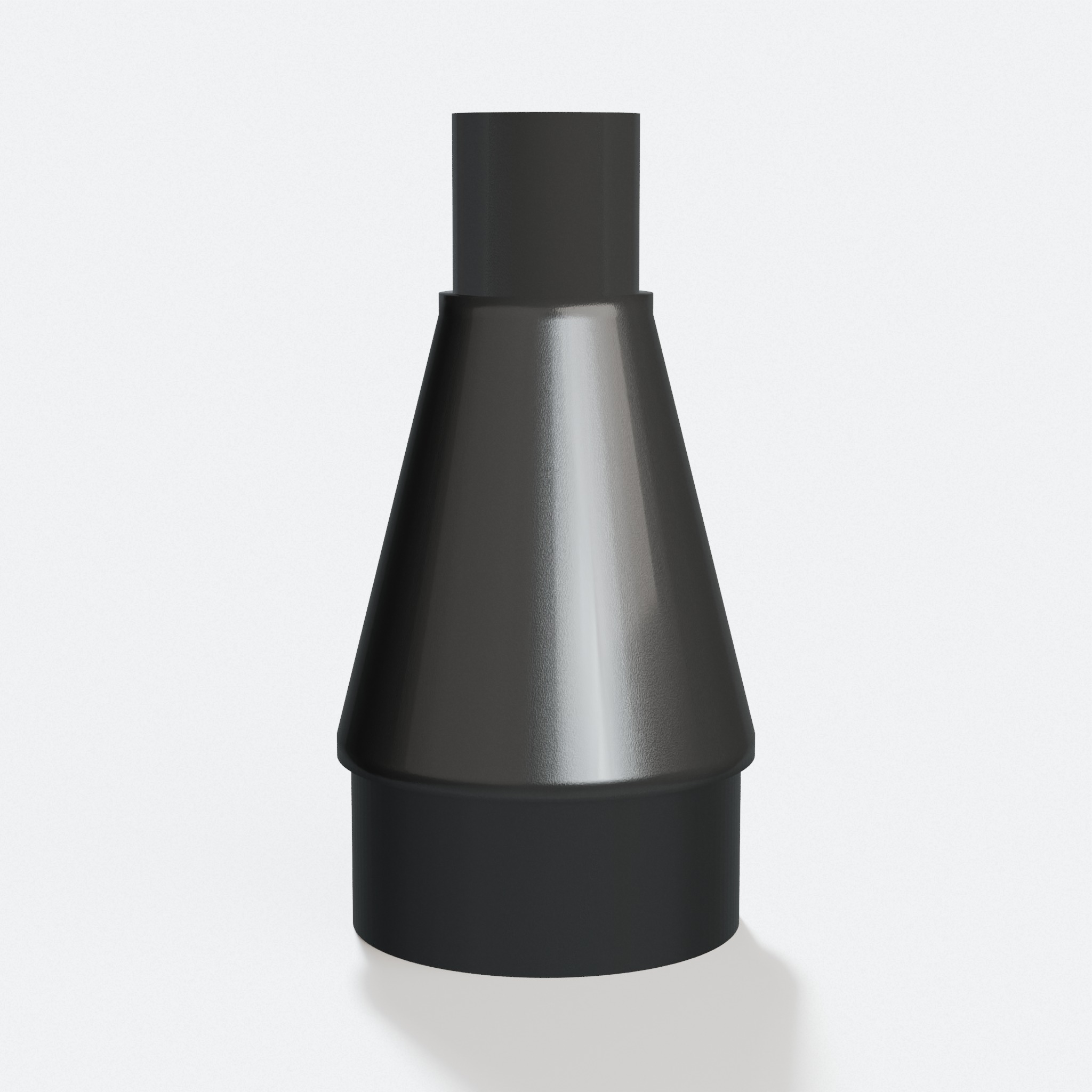

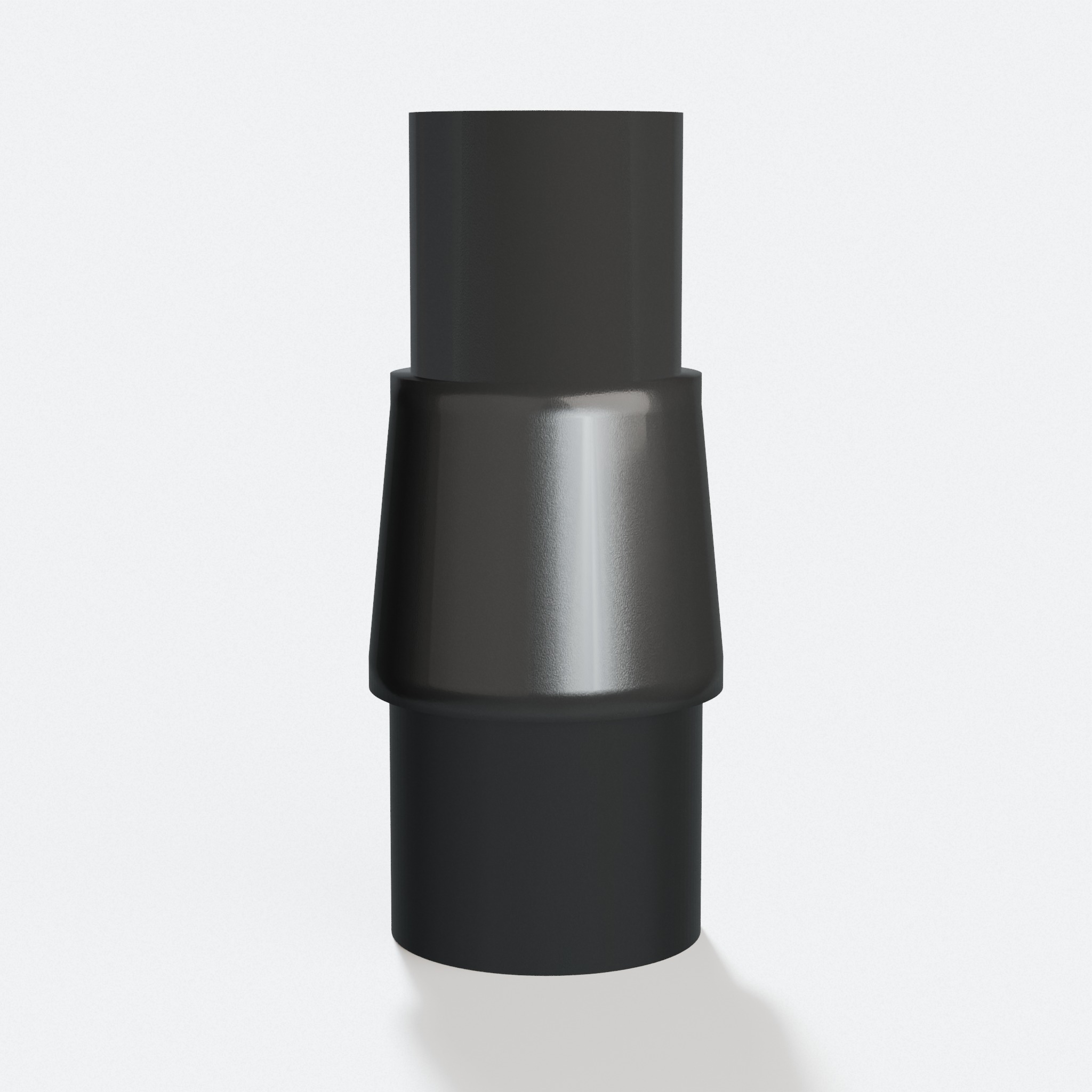

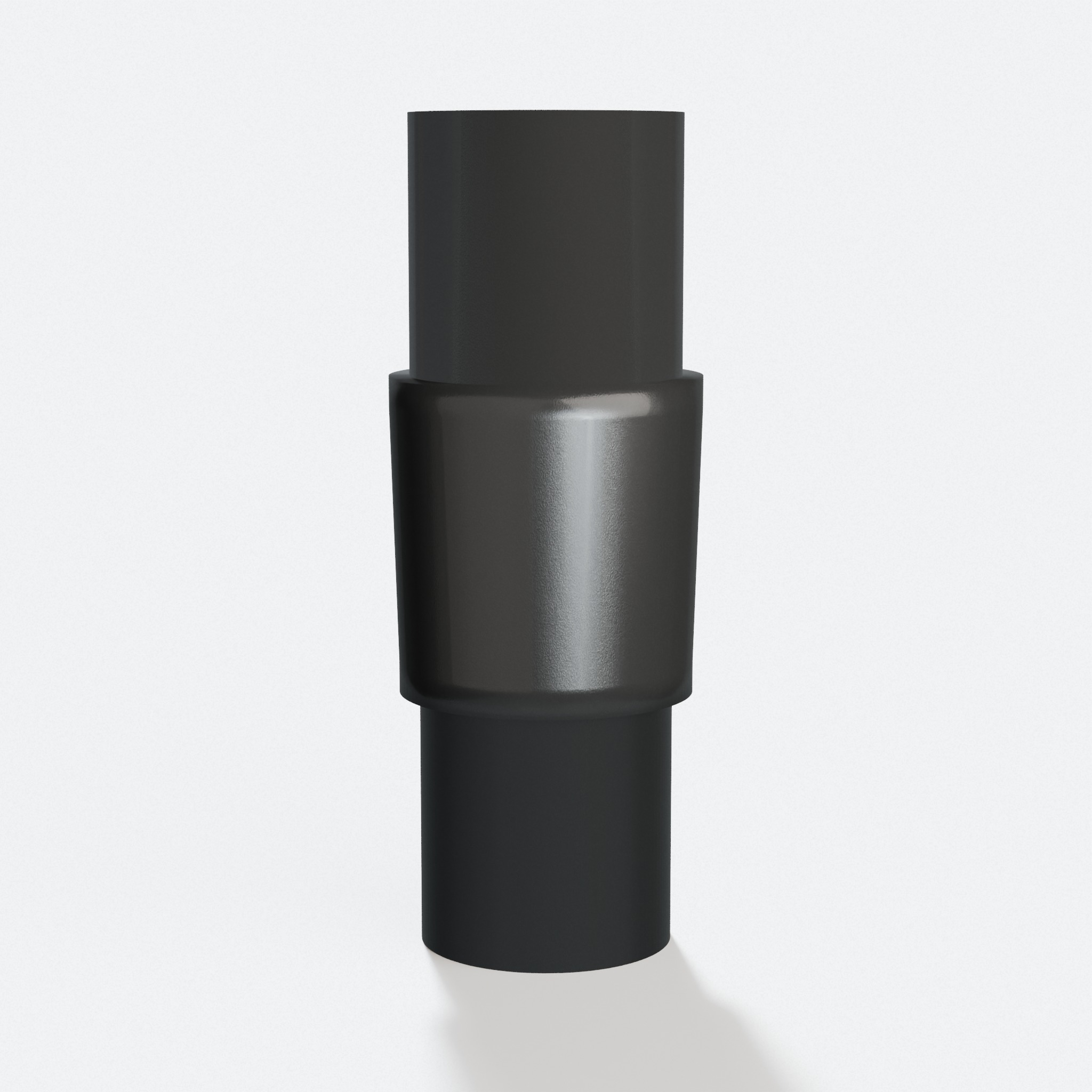

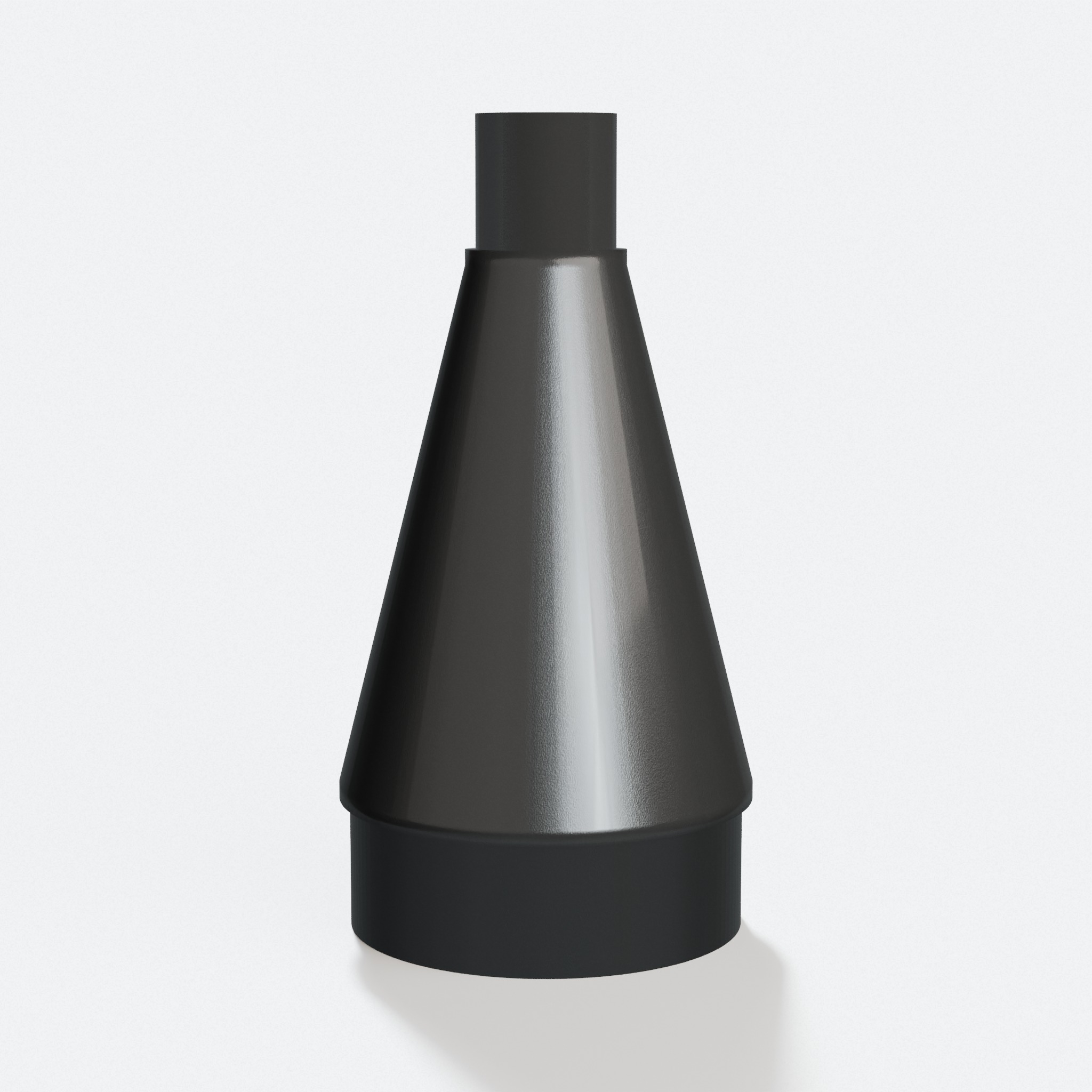

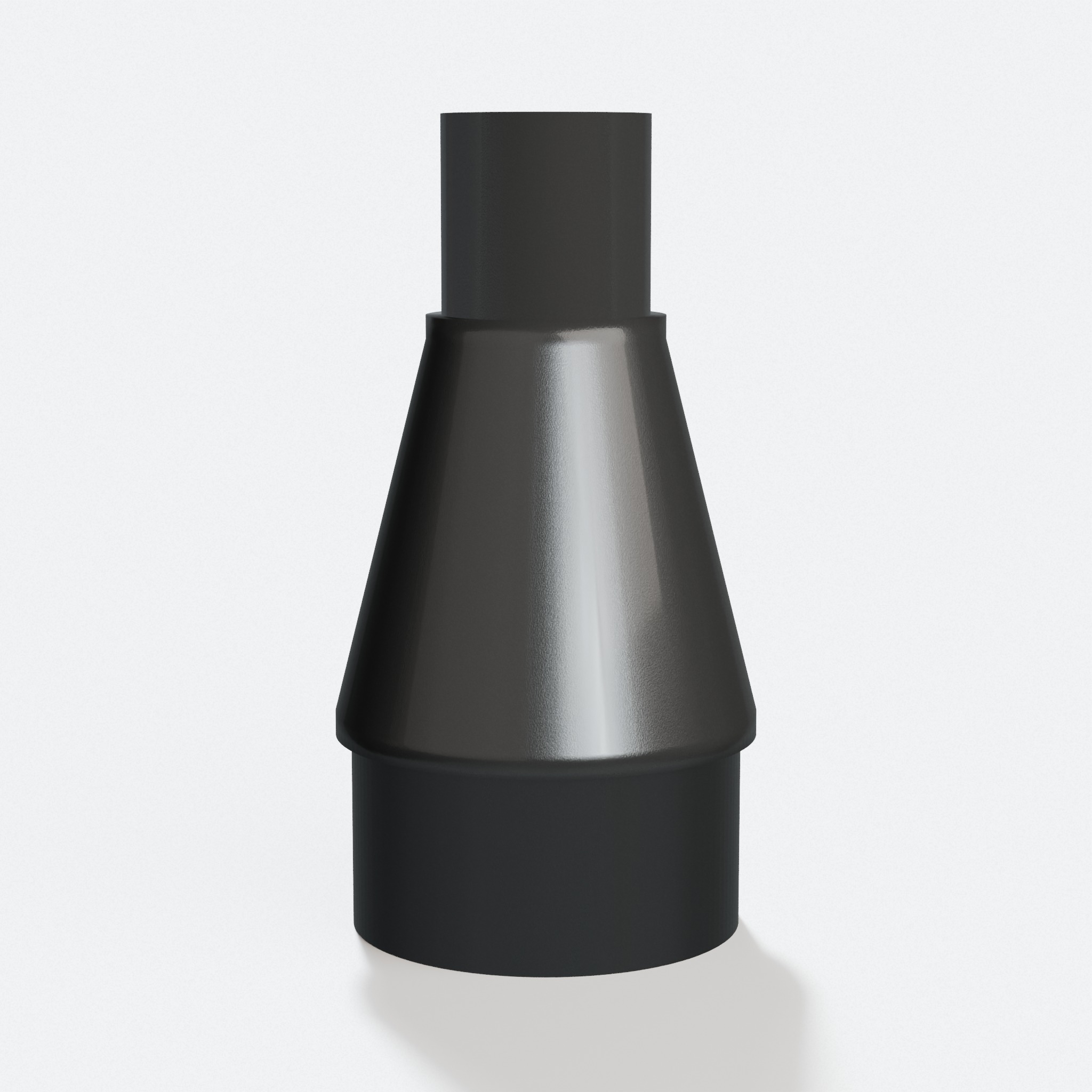

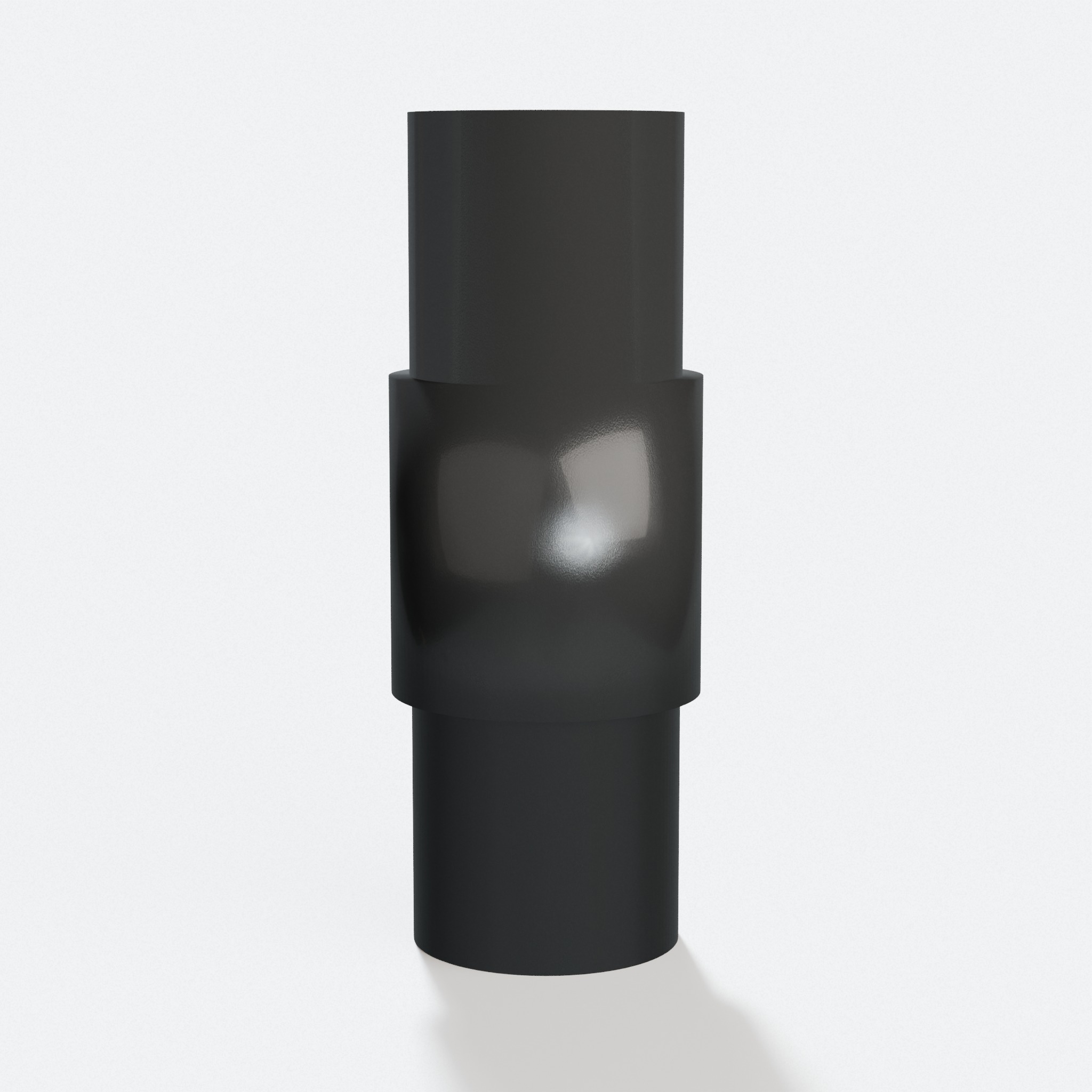

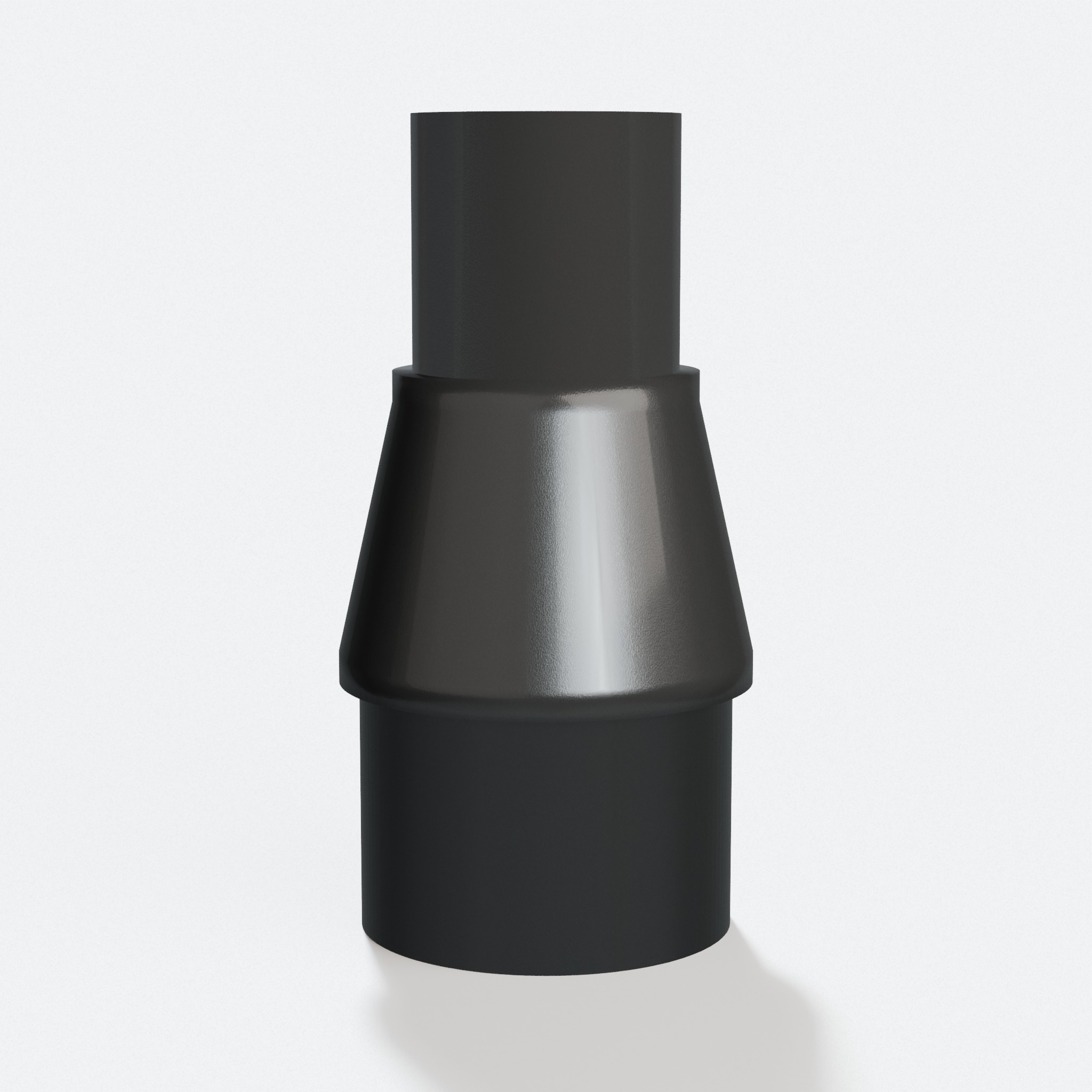

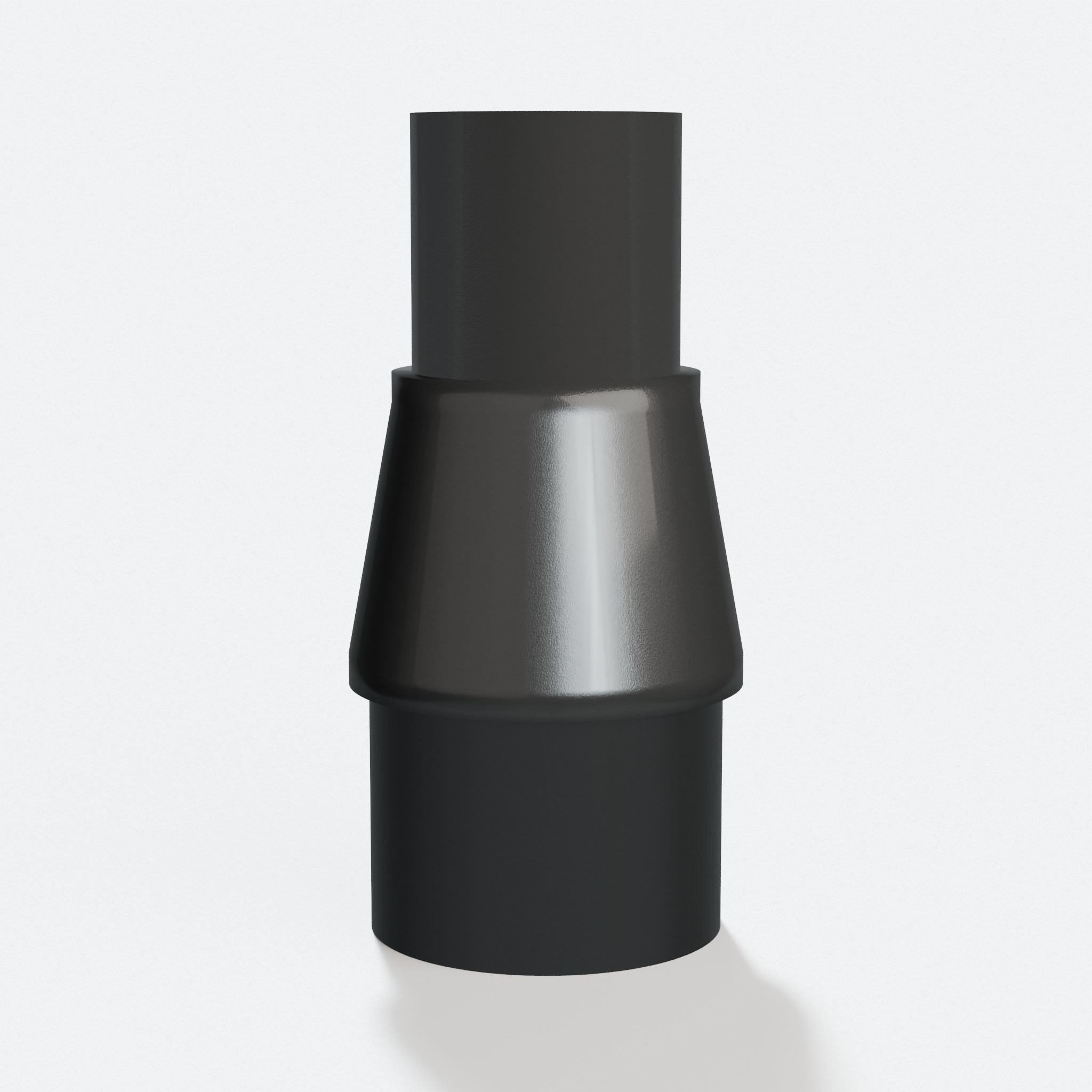

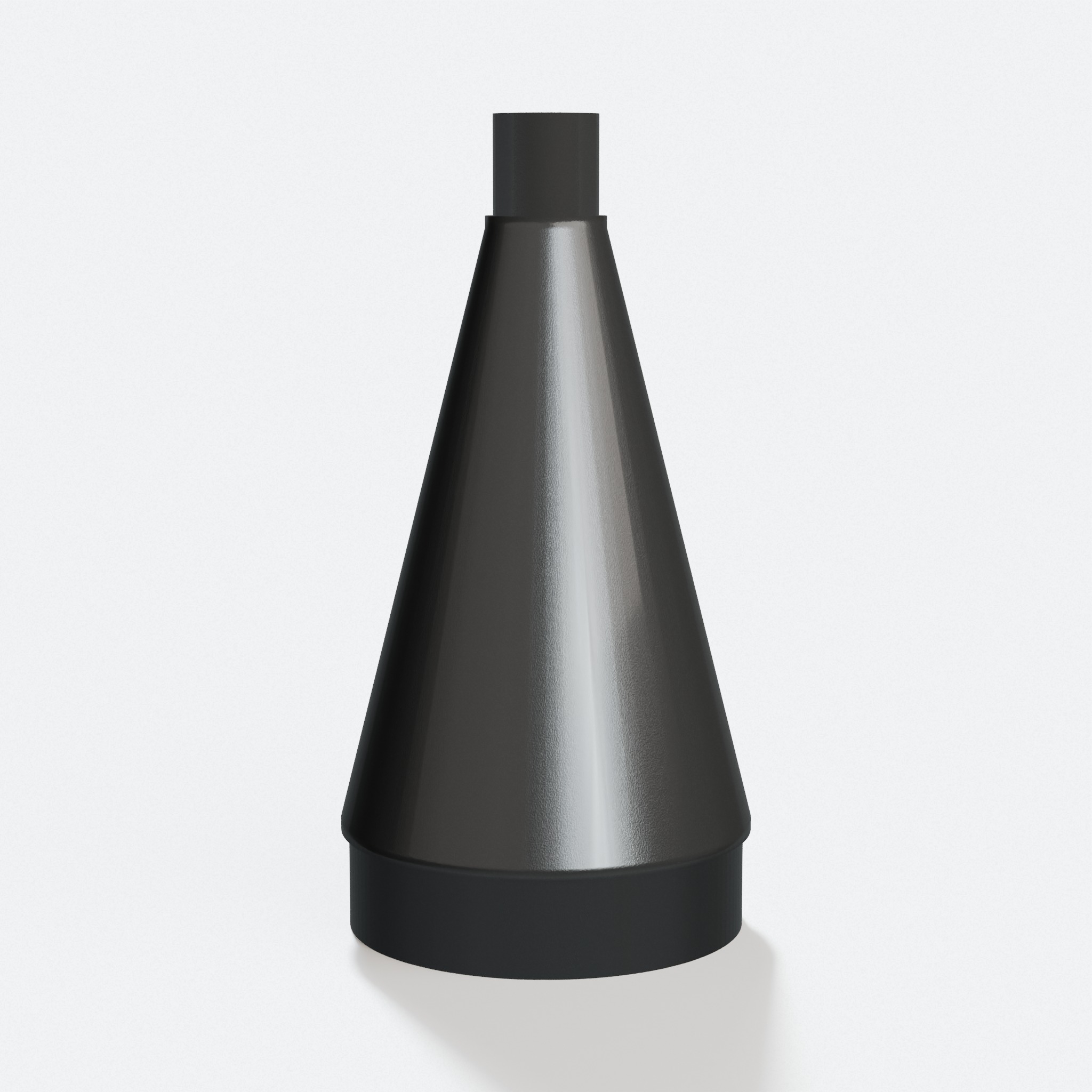

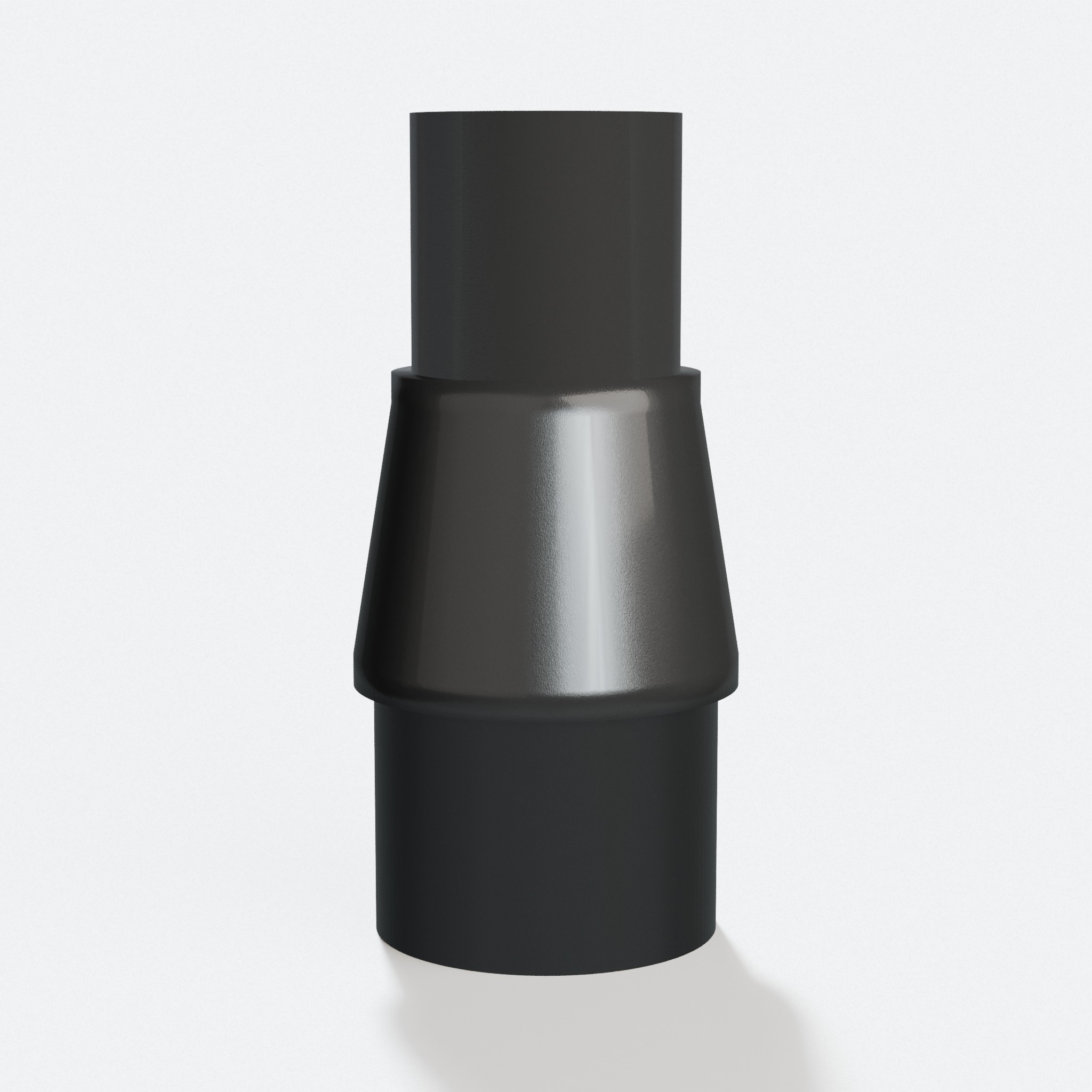

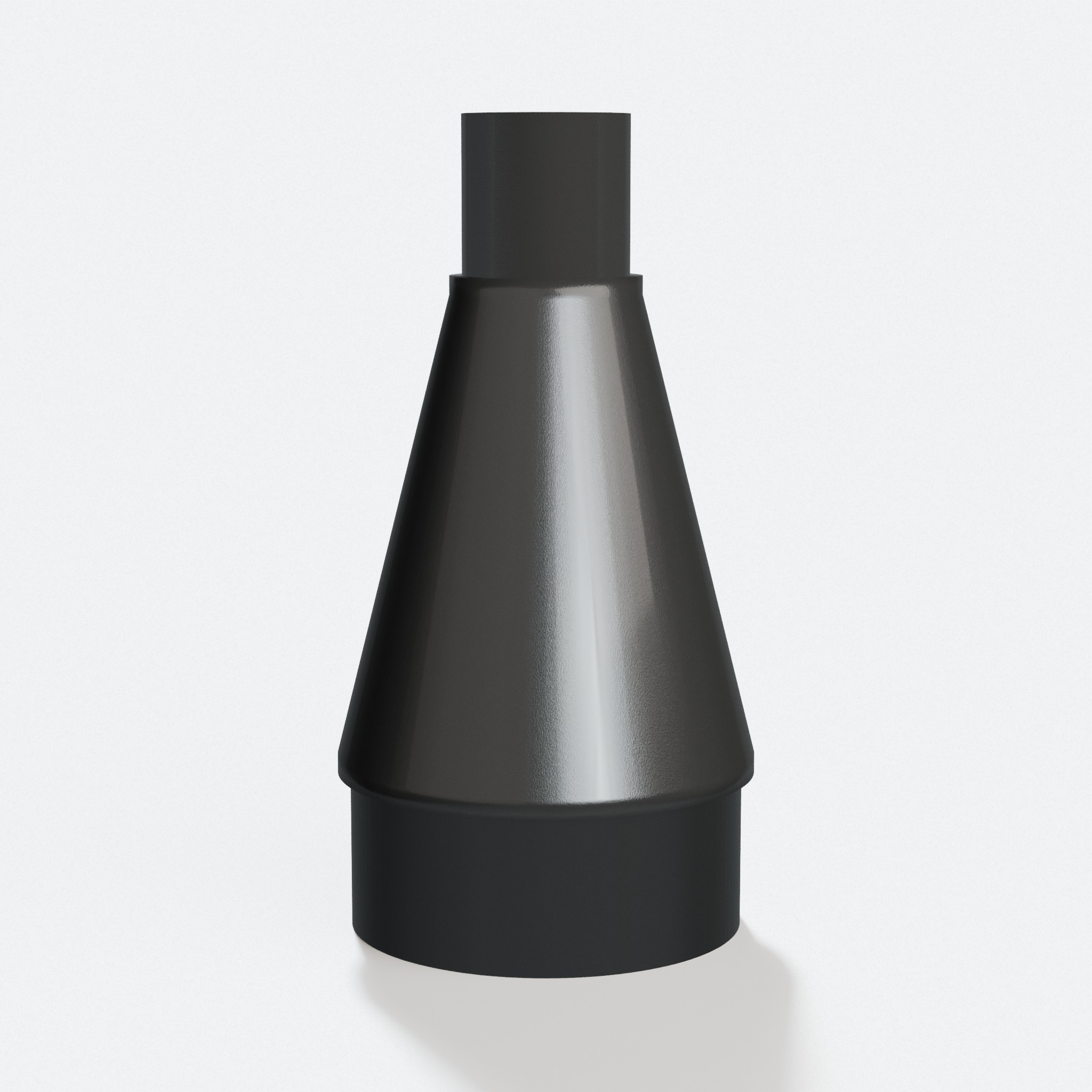

A GulpDust adapter fits the 27 mm port on one end and your bigger vac hose on the other end. Tight seal, full suction at the bit.
How to Connect a Shop Vac to the Shaper Origin
Clear any dust out of the rear port first. A clean port gives the best grip.
Push the small end of the PETG adapter into the 27 mm port. It is a friction fit, so it holds with a firm press. Then press your shop vac or dust extractor hose onto the wide end.
Run the vac the whole time you rout. Steady suction keeps chips out of the cut and dust off the workpiece.
Why Dust Collection Matters More on the Origin
The Origin reads marks on your workpiece to know exactly where it is. Dust piling up on the surface can cover the marks the camera needs to see.
Chips left in the cut path also pack into pockets and grooves, which hides your depth and roughs up the edge.
A good hookup at the 27 mm port pulls dust at the source. The tool sees its marks, you see your line, and your lungs skip the fine stuff.
Shaper Origin Dust Collection FAQ
What size is the dust port on the Shaper Origin?+
The port is 27 mm internal diameter, about 1-1/16 inch. It is a round port at the rear of the tool, and the figure comes straight from Shaper.
Does the Shaper Origin work with a regular shop vac?+
Yes, with an adapter. Most shop vac hoses are 1-7/8 inch or 2-1/2 inch, which is much bigger than the 27 mm port. The GulpDust PETG adapter fits the port on one end and your vac hose on the other.
Do I have to buy Shaper's own dust hose?+
No. Shaper sells a woven dust hose sized for the tool. If you would rather run the shop vac you already own, our adapter steps the 27 mm port to your hose. You skip the extra hose and use what is on hand.
Do I need clamps to attach the adapter?+
No. The adapter is a friction fit. You press it into the port and it holds. The vac hose end works the same way.
Can I print this adapter myself?+
Yes. You can buy the printed PETG part shipped from the US, or download the STL file and print it at home. We suggest PETG with 3 walls and 25 percent infill.
