Bolt-On Dust Port Flange
Add a dust port to a jig, a cabinet, or a drum lid. Screw it on.
- Four countersunk screw holes sit flush with flat-head screws.
- Spigot is 63.2 mm outside and 58 mm inside.
- One piece. Nothing to assemble.
- One size. Screws are not included.
Printed to order and shipped ready to use.
+ $7.95 shipping
Ships in 3 to 5 business days.
3D printed in PETG and made to order. Shipping is a flat $7.95 anywhere in the US.
- Standard sizesStandard size shown
- Made in the USAPrinted to order
- Flat $7.95 shippingOne rate, anywhere in the US
- PETG, not brittle PLABuilt for the shop
About This Part

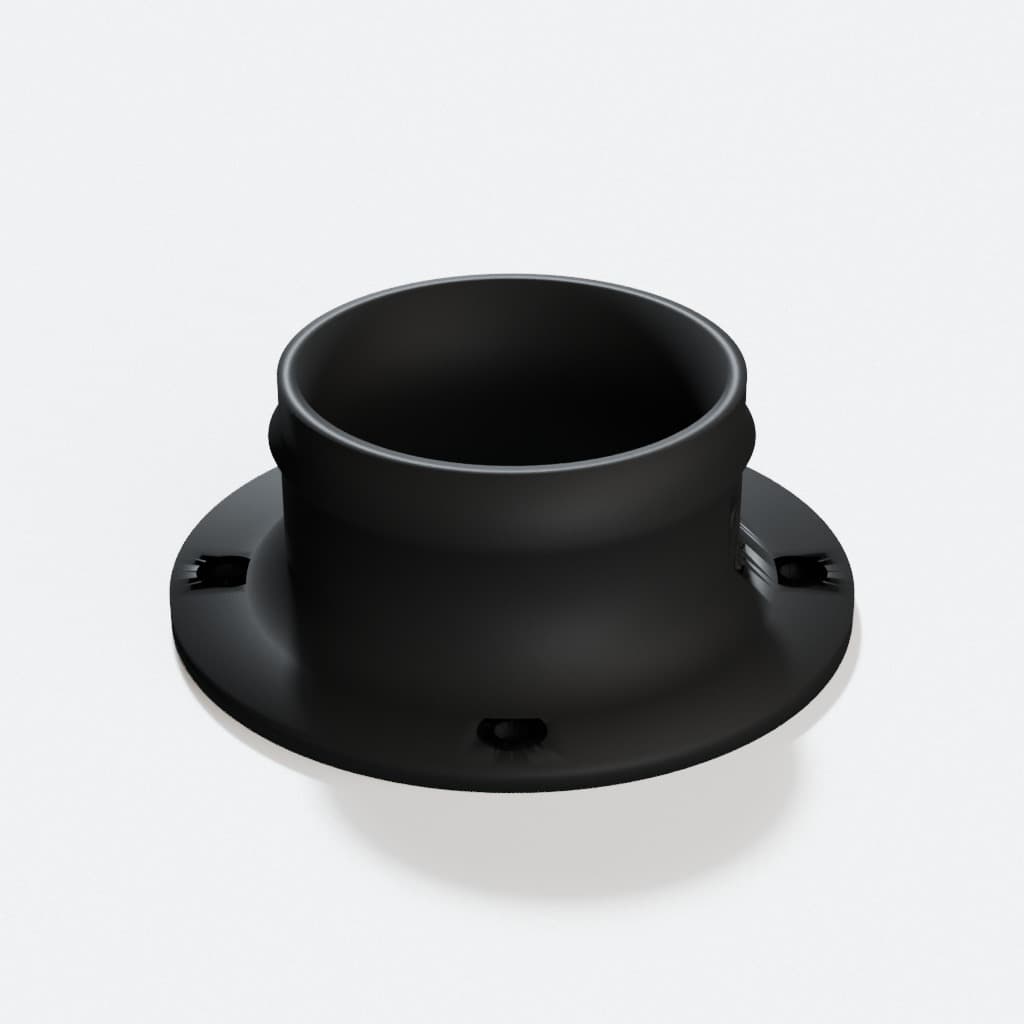

A flat plate with screw holes and a hose spigot. Screw it to a jig, a cabinet, a drum lid, a sanding box, or a tool that never had a dust port. Now it has one.
The spigot is 63.2 mm across the outside and 58 mm across the bore. It stands 32 mm above the plate. A small ring, 1.6 mm tall, sits 9 mm from the tip.
The plate is 96 mm across and 4 mm thick. The whole part is 36 mm tall.
Who it is for: Shop builders adding ports to tool cabinets, sanding boxes, downdraft boxes, and separator drums.
Specs
Bolt-On Dust Port Flange FAQ
What is a bolt-on dust port flange?+
It is a flat plate with screw holes and a hose spigot. You screw it to a surface that has no dust port, like a cabinet or a drum lid, and it turns that surface into a dust port you can hook a hose to.
How do I mount the flange?+
Hold it where you want the port, mark the four holes, drill them, and drive four flat-head screws. The holes are countersunk so the screw heads sit flush. Then push your hose onto the spigot.
What size is the spigot?+
It is 63.2 mm across the outside and 58 mm across the bore. We make it in this one size.
What screws does it take?+
The four holes are 4.5 mm wide, with a 9 mm countersink on top. That clears an M4 or a number 8 flat-head screw. Screws are not included.
